Concrete Breaker

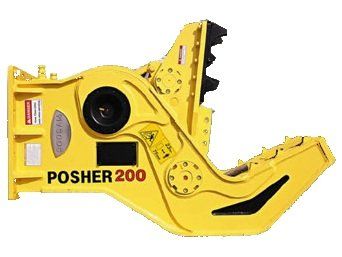

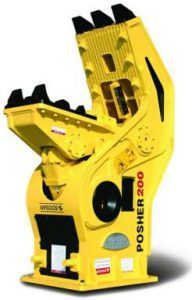

Concrete Breaker – Austas now stock dependable Soosan Posher implements, including their highly effective 200 and 300 Series hydraulic pulverisers. These reliable products are fantastic for demolition jobs where you need to apply a little pressure to separate concrete and rebar. As a Concrete Breaker, there’s nothing better.
Developed for the purpose of crushing concrete rubble, they’re able to help you manage waste and maximise your transport potential by eliminating bulk leftovers. This implement is available now – call for additional information.
- Highest power to weight ratio
- Narrow profile with a robust structure
- Improved vibration dampening and sound suppression system
- Fully enclosed housing and dust protector
- Auto shut off and easy start function
- Locking device for the tie nut bolt
- Models available with operating weights from 1263kg up to 5850kg for carriers from 15 up to 60 tonnes
| Model | SB10TS-P | SB20TS-P | SB30TS-P | SB35TS-P | SB40TS-P | SB43TS-P | SB45TS-P | SB50TS-P | |
|---|---|---|---|---|---|---|---|---|---|
| Operating | 102 | 126 | 152 | 224 | 295 | 375 | 571 | 861 | kg |
| weight | |||||||||
| Oil | 15-30 | 20-40 | 25-50 | 30-60 | 40-70 | 50-90 | 60-100 | 80-110 | l/min |
| flow | |||||||||
| Operating pressure | 90-120 | 90-120 | 90-120 | 100-130 | 110-140 | 120-150 | 130-160 | 150-170 | Kg/cm² |
| Impact | 800-1100 | 700-1200 | 600-1100 | 500-1000 | 500-900 | 400-800 | 400-800 | 350-700 | BPM |
| rate | |||||||||
| 85dB(A) | 3-5 | 3-6 | 4-8 | 5-10 | 5-10 | 6-12 | 6-12 | 7-14 | m |
| radius | |||||||||
| Tool | 40 | 45 | 53 | 60 | 68 | 75 | 85 | 100 | mm |
| diameter | |||||||||
| Applicable | 0.8-2.5 | 1.2-3.0 | 2.5-4.5 | 3.0-5.5 | 4-7 | 6-9 | 7-14 | 11-16 | ton |
| carrier weight |
AUSTRALIAS LEADING SUPPLIER OF SOOSAN HAMMERS & QUALITY AFTERMARKET BREAKER PARTS
Austas Hammers & Accessories is a leading supplier of quality hydraulic attachments and spare parts for hydraulic hammers. We’re dedicated to assisting operators and those in the commercial, industrial and civil contracting industries by providing a comprehensive selection of quality plant and equipment at competitive prices. Call or email today for additional information about our range of leading international brand products and parts!
Soosan have simplified the design of their traditional breakers and developed a unique patented valve system that updates the breaker’s hydraulic circuit.
This means decreased oil flow, less ongoing costs and an increase in efficiency for contractors and operators. The Soosan SB Series breakers are also fully enclosed with a sound-inhibiting frame that reduces noise on sensitive sites and in residential areas, plus minimises recoil to the carrier.
The latest product to come out of the Soosan factory is the revolutionary new SQ Series breaker. This modern breaker is a culmination of more than 2 decades of planning and experience.
Its innovative design includes a superior oil and gas percussion mechanism combined with less working components, making it incredibly efficient and easy to maintain. The auto shut off function (anti-blank hammering) also gives the user total control and allows you to select between high frequency/normal power and low frequency/extra power, making it as effective as it is adaptable.
