Lightweight and slim design for optimum performance on zero swing excavators.

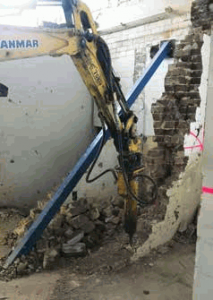

Ideal for renovation works, demolition, plumbing, general construction and landscaping operations.
Slim and shapely design with simple operation, enables excellent manoeuvrability into the tightest of spaces.
The carburised casing is strong and will not crack unlike cast housings. An absence of through bolts means the hammer is more tolerant of dry firing.
Chisels are quick and easily replaced in the field with minimal tools required, and the hammer is also designed with minimal impact on the excavator in mind.
Using many commonly available parts, repairs and maintenance are far less costly than competitive breakers, meaning overall life cost will be dramatically lower.
Model | Unit | SR40+ | SR45+ | SR53+ | SR60+ | SR68+ | SR75+ |
---|---|---|---|---|---|---|---|
Operating weight | kG | 72 | 96 | 155 | 208 | 265 | 294 |
Height | mm | 925 | 1006 | 1056 | 1172 | 1276 | 1499 |
Oil flow reqd | 1/mm | 15 -30 | 20 - 40 | 25 -50 | 30 -60 | 40 -70 | 50 -90 |
Operating pressure | kg/cm2 | 90 - 120 | 90 - 120 | 90 - 120 | 100 - 130 | 110 - 140 | 120 - 150 |
Impact rate | BPM | 800 - 1400 | 700 - 1200 | 600 - 1100 | 500 - 1000 | 500 - 900 | 400 - 800 |
Tool Diameter | mm | 40 | 45 | 53 | 60 | 68 | 75 |
Hose Diameter | inches | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
Carrier size | Ton | 0.8 - 2.5 | 1.2 - 3 | 2.5 - 4.5 | 3.0 - 5.5 | 4 - 7 | 6 - 9 |
